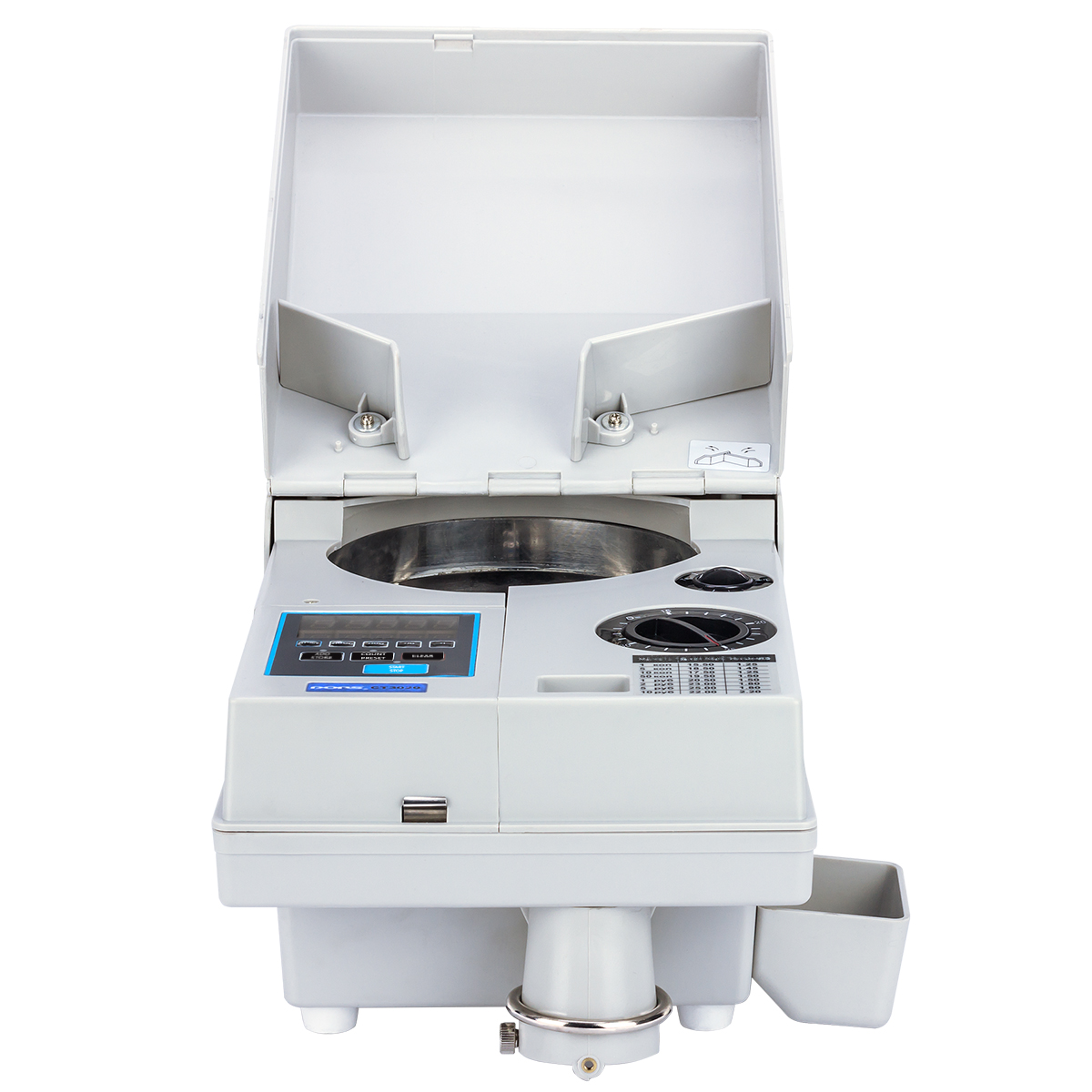

DORS CT3020

COIN COUNTER

It’s designed for counting of medium and large volumes of coins of the same denomination.

Сравнить

Description

DORS CT3020 has an ergonomic design and is equipped with a carrying handle. To put it into working position, simply open the top cover, which also serves as a hopper and provides quick and easy access to the transport mechanism, control panel and adjustment handles.

  • Ability to count the coins of any world currency.
  • High counting speed (2500 coins per minute).
  • Large hopper capacity (up to 2000 coins).
  • Reliable metal construction is the basis for long-term operation of the counter.
  • Automatic reverse to prevent jams
  • Automatic stop at the end of the count
  • Saving counting data in the counter’s memory
  • Equipped with a rejecting coins tray (other denominations, deformed, etc.)
  • There is a fastening for a coin storage bag.

ADVANTAGES

  • The heavy duty construction for a continuous count.
  • It has compact dimensions and an easily removable panel that allows quick access to the counter mechanism for technical maintenance, as well as checking the condition of the path elements.
  • The accumulation mode allows you to count a large volume of coins in the cases when the coin volume is larger than the hopper capacity.
  • The batch mode helps to count the exact number of coins. When the specified value is reached, DORS CT3020 will automatically stop counting.
  • Simple but at the same time precise mechanical adjustment for processing the denomination selected by the cashier. On the front panel there is a settings table that informs cashier what are the diameter and the thickness of the desired denomination.





SPECIFICATIONS:



Display 5-digit red LED
Counting speed 2500 coins per minute
Hopper capacity 2000 coins
Size of accepted coins Thickness range: 1,0 – 3,5 mm
Diameter range: 15 – 35 mm
Counting modes: simple counting

batch counting

accumulation counting

Power supply 220-240 V ~ 50/60 Hz
Power consumption 60 W
Overall dimensions (WxDxH) 226х381х185 mm
Weight 7,5 kg
Production DORS
