DORS 230

Description

Multicurrency automatic detector DORS 230 is intended for automatic authenticity control of different currencies. There is no need for user to know the security features of banknotes and the ways of their control.

Applications

DORS 230 is essential in a Bank’s foreign currencies cash desk that provides a currency exchange for long list of currencies. The detector is verified an authenticity of those currencies that are respectively rare in that region or an authenticity of banknotes that were rejected by a banknote counter due to its wear and tear.

DORS 230 is recommended for a Bank’s cash desk to provide an additional verification of suspected notes of the national currency, DORS 230 can help to discover very sophisticated counterfeit notes.

DORS 230 is recommended for a retail cash desk (at supermarket, hypermarket, convenience store, service provider) where an average purchase has a high value. This detector helps to avoid the losses caused by poor skills of a teller in a field of banknote authenticity recognition through viewing detectors.

Due to small dimensions of DORS 230 and its built-in battery, it can be used by private persons for banknotes’ authenticity verification indoor and outdoor.

DORS 230 is a valuable and useful gift for a business person, a traveller, and those who loves smart gadgets.

Distinguishing features

DORS 230 has no limit on a number of supported currencies. Machine’s software and hardware make it able to recognize all world currencies through one template.

Device is equipped with a touch screen and a multilanguage graphic animated interface.

A type of currency is recognized automatically, no need to choose it manually from a currency list.

Any orientation of banknote is acceptable, no need to remember which way you have to insert a given currency.

DORS 230 has small dimensions and built-in battery.

Banknote validation system

The core of DORS 230 is the innovative banknote validation system (BVS) developed by R&D department of DORS and protected by 6 patents.

The essential part of authenticity verification in DORS 230 is high-resolution multirange CIS (contact image sensor).How it works? During its way through detector, each banknote is scanned by transmitted light at six wavelengths of infrared and visible range. The built-in validation system is recognized a banknote’s currency and denomination, then verify its security features. If a note is genuine, it became a part of current session’s result.

DORS 230 is verified the whole images of a banknote as well as the areas where certain security features are situated (for instance, IR marks, water marks, security thread, serial numbers, etc.). The transmitted light is helped to scan the particulars of a banknote covered by ink or buried in a banknote’s paper.

The DORS banknote validation system is allowed to verify even those security features of banknotes that a relevant Central Bank doesn’t reveal officially. Previously such a high level of counterfeit detection was available through high-end banknote sorters only. It’s impossible to provide the same level of authenticity verification by means of automatic detectors of a previous generation that are based on point IR sensors and simple magnetic heads, that can’t scan and analyze the whole image of a banknote.

Modern user interface

The detector DORS 230 is equipped with a high-resolution color LCD 3.5″ (8.9cm)..

All functions of device are available through its touch screen display. It’s the first machine of that class thus equipped.

The interface of DORS 230 is based on technologies and art solutions used in modern mobile devices.

The results of detection are displayed with large bright numbers and letters. Due to it, display of DORS 230 is easily readable even by visually impaired people.

Functional capabilities

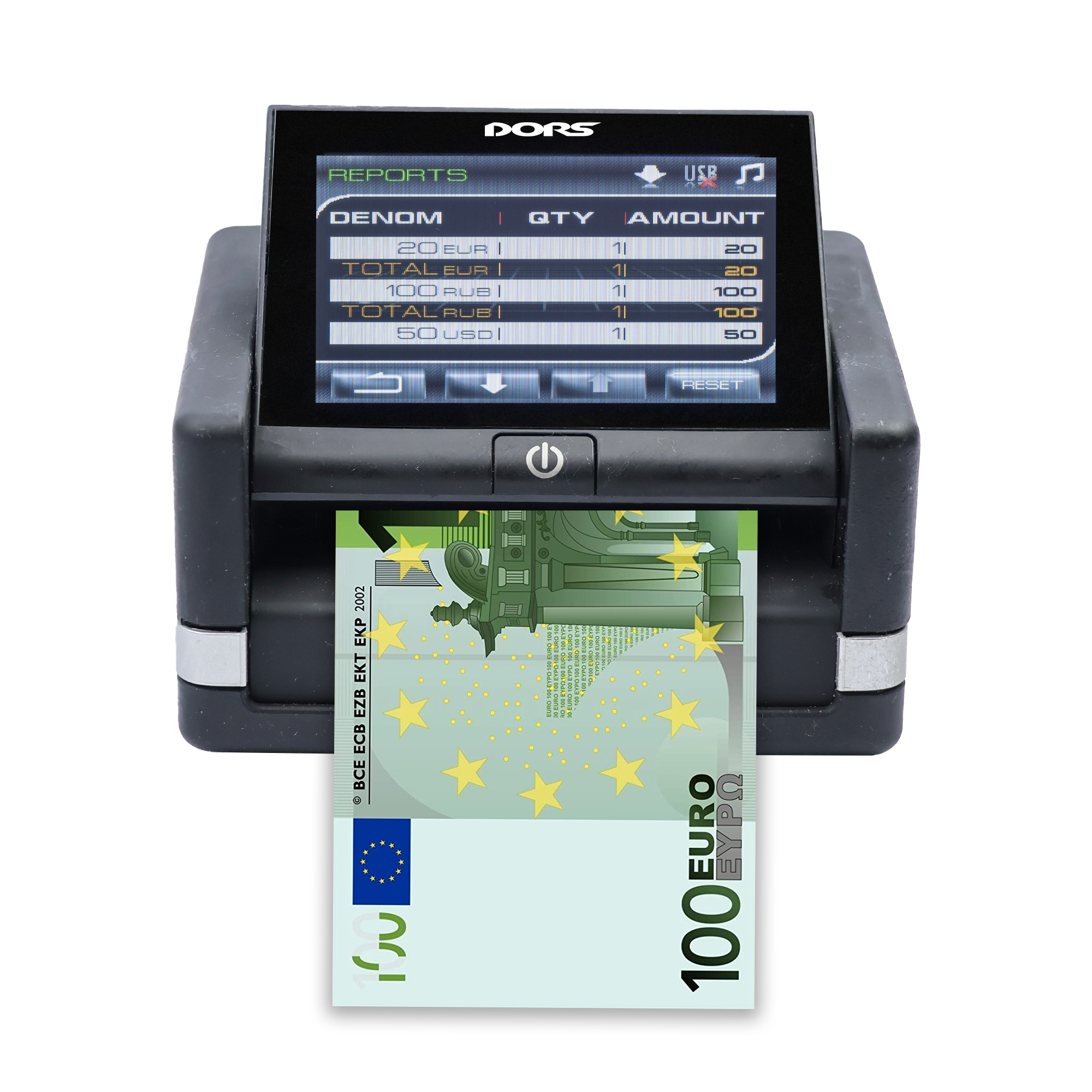

In course of banknote’s verification a display of DORS 230 is showing a currency and a denomination of the latest accepted genuine banknote as well as a total number and an amount of this currency’s genuine notes verified during a current session. When a suspicious note is detected, a message «Banknote is rejected» is appeared. The suspicious notes are not included in a total amount of the verified banknotes.

When a customer pushes a button «REPORT», the detailed report is appeared on the screen. It’s included numbers, denominations, and amounts of all notes verified during a current session. If the report is occupied more than one screen, you can scroll it by touch to the screen.

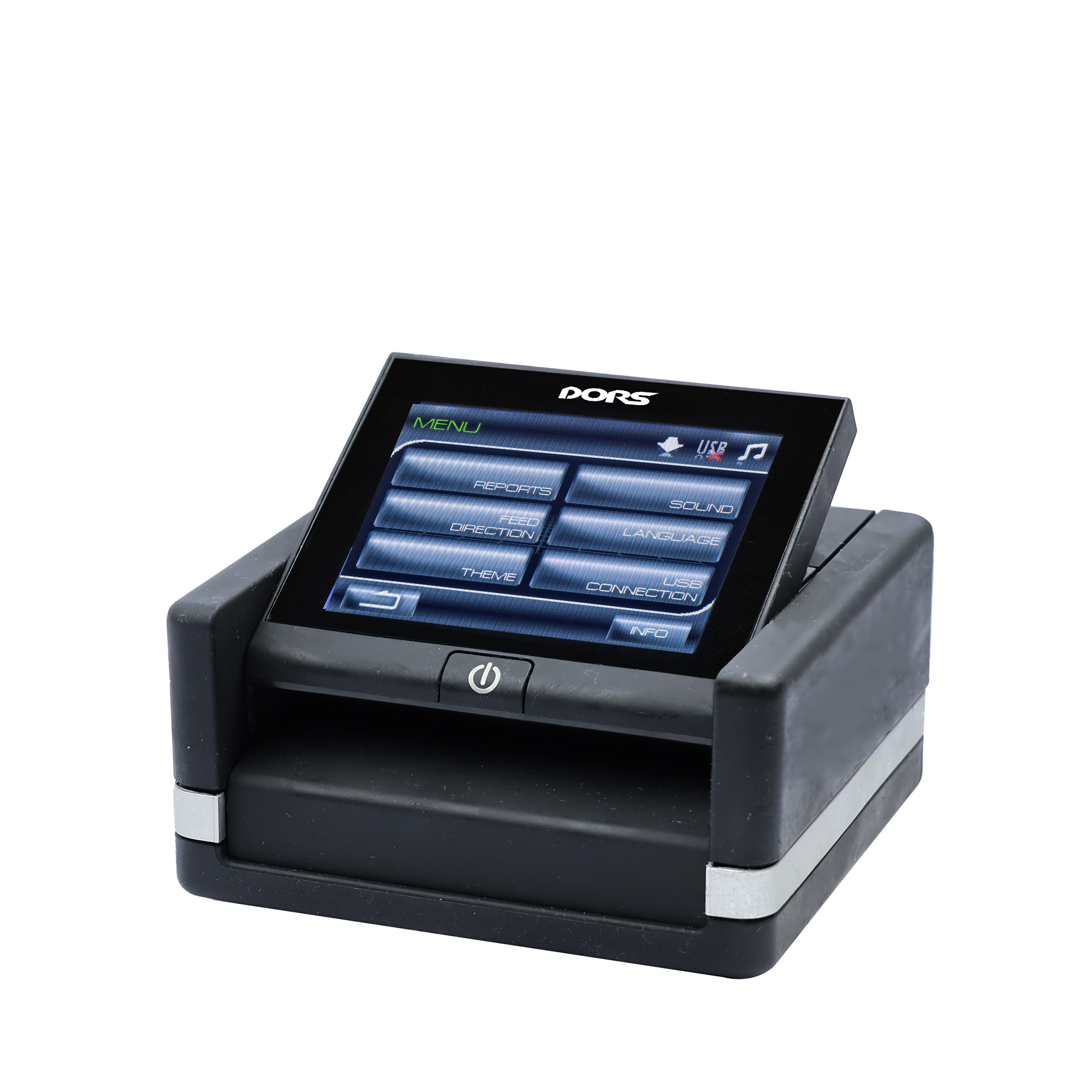

Through device’s MENU it’s possible to adjust a machine to the customer’s needs (for example, to choose a screen’s theme, to adjust a sound level, etc.), and to get the info on a software versions of the machine.

At the top of the main screen there are an indicator of built-in battery’s charge level and the following fast access keys: an application «CURRENCY CONVERTER», choice of genuine note’s output, switch on a USB connection to PC, switch off a sound.

By means of built-in application «CURRENCY CONVERTER» it’s easy to convert an amount of one currency to amount of other currency, using a current exchange rate («we buy» or «we sell»).

A body of DORS 230 has a special mat finish resistant to fingerprints and scratches. This finish is also avoid a slipping of device during its handling.

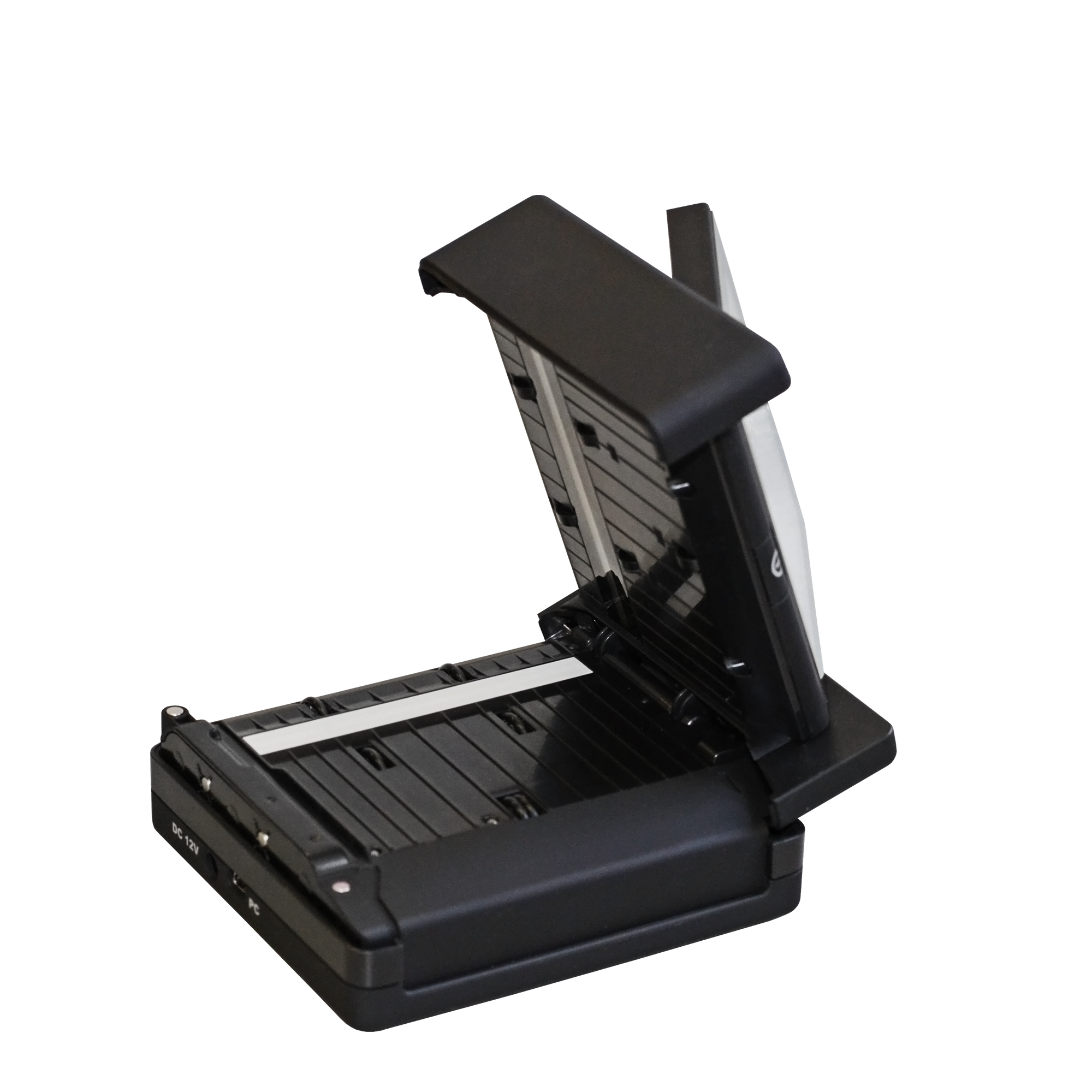

A device has an easy-opening body that fixed by magnetic latches. It’s provided an easy access to the path for sensors cleaning.

Remote software update

Both controlling software and currencies database are updatable on the Internet via PC that is connected to DORS 230. A software update is available by means of special server. Customer can upgrade a machine to the latest version in one click. A match of the hardware and software versions is provided automatically when loading from the server.
